MC1109 + MD4200 BOM List |

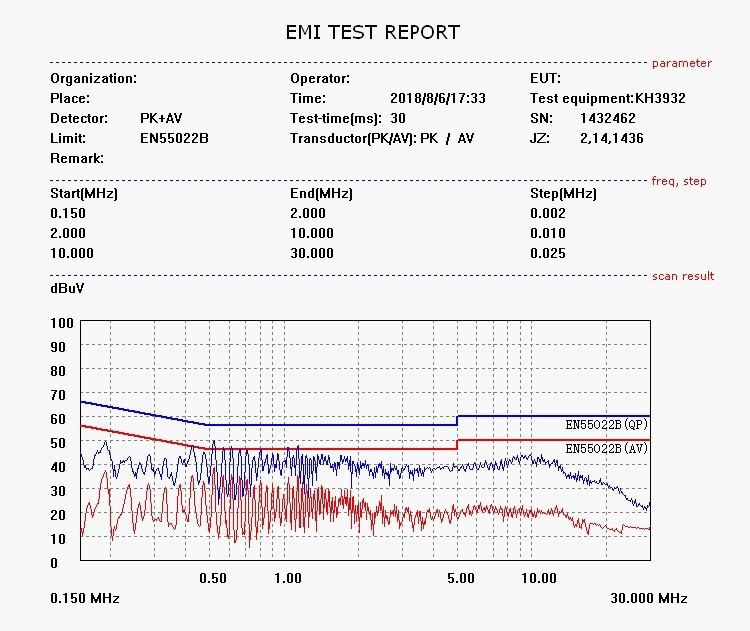

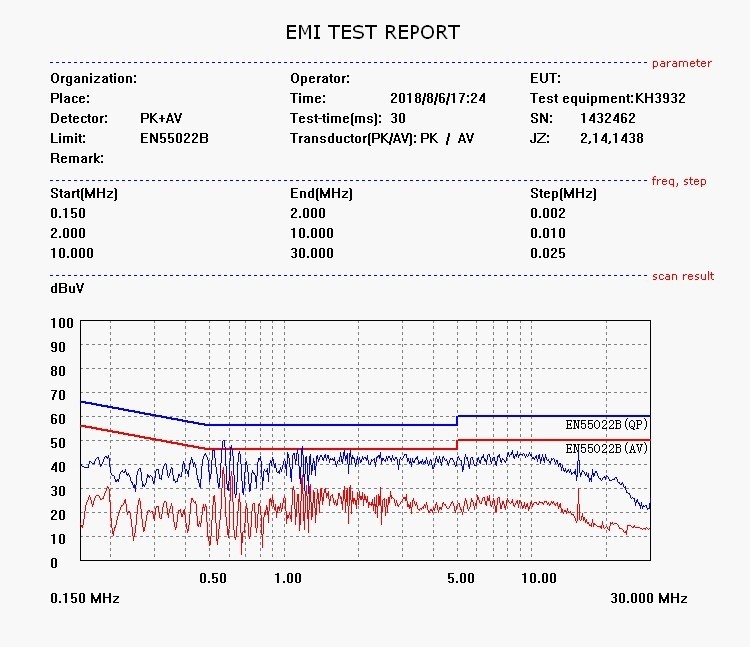

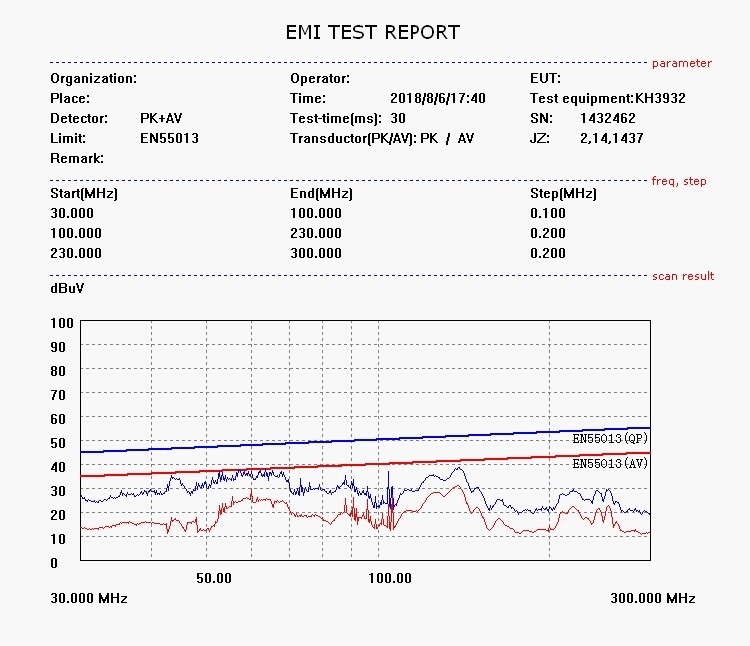

Product specifications 5V2.4A
(three windings of the transformer) |
Input: 90 ~ 264Vac; Output: 5V2.4A (safety products) |
| primary |
| No. |
Q’ty |
Location |
Discription |
Pacakge |
Remark |
| 1 |
1 |
C1 |
10uF, 400V, Electrolytic 105 ℃ |
Φ8 * 12 |
|
| 2 |
1 |
C2 |
15uF, 400V, Electrolytic 105 ℃ |
Φ10 * 13 |
|
| 3 |
1 |
C3 |
22uF, 50V, low-ESR Electrolytic 105 ℃ |
Φ5 * 11 |
|
| 4 |
1 |
C5 |
Capactor SMD 471, 500V 0805 10% |
0805 |
|
| 5 |
1 |
C8 |
Capactor SMD 103 or 224 , 25V 0603 10% |
0603 |
|
| 6 |
1 |
D1 |
SMD A7 1000V / 1A, SOD-123 |
SOD-123 |
|
| 7 |
1 |
D2 |
SMD F7 1000V / 1A, SOD-123 |
SOD-123 |
|
| 8 |
1 |
L1 |
Choke coil 330uH 1W |
Axial |
|
| 9 |
1 |
L2 |
Choke SMD 10uH 0805 5% |
0805 |
|
| 10 |
1 |
RF1 |
Resistor 3.3Ω Φ3.6 * 10 |
Axial |
|
| 11 |
1 |
T1 |
Transformer, EF1510, Widened, (Slot width 6.4MM) |
EF15 |
|
| 12 |
1 |
CY1 |
Y1 CAP 102 1000PF pitch 9.5mm |
DIP |
|
| 13 |
1 |
U1 |
MC1109 SOIC-7 SMD |
SOIC-7 |
|
| 14 |
1 |
BD1 |
MB10F 1000V / 1A Bridge |
SO-4 |
|
| 15 |
2 |
R1 R2 |
Resistor SMD 1. 5 M 0805 5% |
0805 |
|
| 16 |
1 |
R3 |
Resistor SMD 1.6 0 R 1206 1% |
1206 |
|
| 17 |
1 |
R4 |
Resistor SMD 1.8 0 R 0805 1% |
0805 |
|
| 18 |
1 |
R5 |
Resistor SMD 330K 0805 5% |
0805 |
|
| 19 |
1 |
R6 |
Resistor SMD 220R 0805 5% |
0805 |
|
| 20 |
1 |
R9 |
Resistor SMD 5.1 K 0603 1% |
0603 |
|
| 21 |
1 |
R10 |
Resistor SMD 6.8K 0603 1% |
0603 |
|
| 22 |
|
|
|
|
|
| Secondary |
| No. |
Q’ty |
Location |
Discription |
Pacakge |
Remark |
| 23 |
2 |
C7, C12 |
560 uF, 6.3 V, Solid capacitors, 105 ℃ |
Φ6.3 * 9 |
|
| 24 |
1 |
USB |
USB |
DIP |
|
| 25 |
1 |
U2 |
MD4200 SOIC-8 SMD |
SOIC-8 |
|
| 26 |
1 |
R11 |
Resistor SMD 5.6K 0805 5% |
0805 |
|
| 27 |
1 |
R12 |
Resistor SMD 10K 0603 5% |
0603 |
|
| 28 |
1 |
R14 |
Resistor SMD 2.2K 0805 5% |
0805 |
|
| 29 |
1 |
R15 |
Resistor SMD 22R 0603 5% |
0603 |
|
| 30 |
1 |
C10 |
Capactor SMD 471,50V 0603 10% |
0603 |
|
